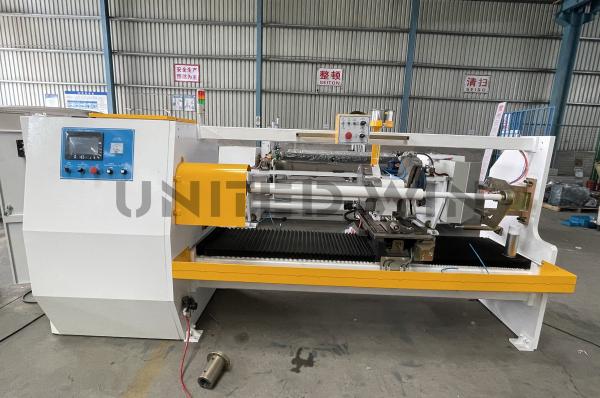

Single Knife Single Shaft PVC Film Adhesive Tape Slit Cutting Making Machine
Descripition:
This single axis automatic cutting and slitting machine is suitable for cutting PVC, OPP, PE, masking paper, double side tape, kraft paper tape, coth base, foam and other roll tapes.
1. The control of each part of the single- axis automatic cutting machine is controlled by a centralized panel, and the operation uses an LCD touch screen. Various parameters and functional condition settings can be directly input on the screen
2. Adopt silicon solution cooling system: avoid sticking of cutter head to ensure smooth cutting
3. The stroke is driven by a servo motor, equipped with precision ball screws and linear slides. The stroke of the cutter head is stable and the positioning is accurate.
4. The stepper motor adjusts the angle of the cutter. When the cutting surface of the product is uneven, the cutting angle can be directly adjusted to ensure the quality of the product
Technical parameters:
| Model | UWC1301 | UWC1601 |
| Effective width(mm) | 1300 | 1600 |
| Cutting speed(m/min) | 3-20 | 3-20 |
| Max. cutting dia.(mm) | 250 | 250 |
| Min. cutting width (mm) | 3 | 3 |
| Paper tube ID dia.(mm) | 25-76 | 76 |
| Cutting precision | 0.1 | 0.1 |
| Blade | φ300 | φ300 |
| Total power(kw) | 10 | 10 |
Application:
Company Information:
FAQ:
1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.
2. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.
3. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.
4. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.
Machine: please provide the type of machine required and other special requirements.
5. Do you control the items quality?
Each machine strictly tested one by one before shipping.
6. How long is the delivery time for your machine?
After deposit is about 30 days.
7. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.
8. When we receive the box, find any items missing or defective, how should we do?
Please contact us ASAP, we will check and give you best solution soon.
